Sight VLT C2|GREY/BLACK|S|M|L

“These bikes are shipped unassembled. Bikes should be assembled by an authorized bicycle retailer.”

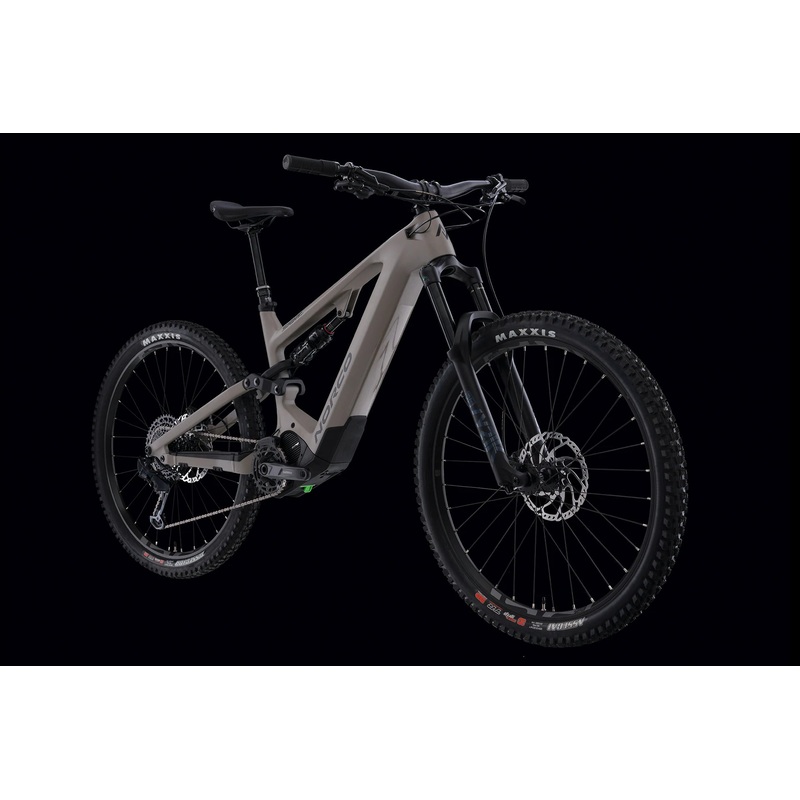

The Sight VLT C2 is a carbon electric All-Mountain bike with Norcos legendary descending capability, quick, confident climbing and the boost you want to ride faster and further.

DETAILS

• Multiple models to make it your own.

• Best-in-class Shimano STEPS EP8 Drive System.

• Custom select your own battery capacity.

• Removable battery for easy charging and one-tool swaps.

• Features the Ride Aligned Design System.

• Robust components for performance and durability.

Frameset

FRAME Carbon Front Triangle and Seatstay, Aluminum Chainstay, 150mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned FORK RockShox Lyrik Select, 160mm, E-Rated, 44mm Offset, 1.8″ Tapered, E-Rated REAR SHOCK RockShox Super Deluxe Select + RT DebonAir 2, MegNeg Air Can, Custom Tune, 210x55mm

Drivetrain

REAR SHIFTER SRAM SX Eagle Single Click REAR DERAILLEUR SRAM GX Eagle CRANKSET Shimano FC-EM600, 34T, 165mm CASSETTE SRAM Eagle PG 1210, 11-50T CHAIN SRAM SX Eagle

Brakes

FRONT BRAKE Shimano BR MT520, 4 Piston, Metallic Pads FRONT BRAKE ROTOR Shimano SLX SM-RT 66, 203mm REAR BRAKE Shimano BR MT520, 4 Piston, Metallic Pads REAR BRAKE ROTOR Shimano RT-EM600 203mm, Integrated Sensor Magnet BRAKE LEVERS Shimano BR MT520

Components

HANDLEBAR Butted 6061 Alloy, 800mm, 25mm Rise STEM CNC Alloy 40mm Length, 35mm Clamp SEATPOST TranzX YS105 Dropper, 34.9mm, 125mm (S), 150mm (M), 170mm (L), 200mm (XL) DROPPER LEVER Norco Dropper Lever HEADSET FSA No.55R Sealed Bearing SADDLE Ergon SM-10 E-Mountain Sport GRIPS DMR DeathGrip A20 Soft, Thin (S, M), Thick (L, XL)

Wheels

FRONT HUB DT Swiss H370, 15x110mm Boost 6 bolt, E-MTB REAR HUB DT Swiss H370 12x148mm Boost, HG, 6 bolt, E-MTB RIMS e*thirteen LG1 DH, 32H, 29″ FRONT TIRE Maxxis Assegai 2.5″ 3C MaxxGrip/DD/TR/WT REAR TIRE Maxxis Disector 2.4″ WT 3C MaxxTerra/DD/TR SPOKES/NIPPLES DT Swiss Stainless Butted Front, Alpine Rear VALVES Tubeless Presta SEALANT Stan’s – 200ml

Electric Components

MOTOR Shimano STEPS EP8 BATTERY Removable. 900Wh, 720Wh and 540Wh Options.

Geometry

S M L XL Wheel Size 29″ 29″ 29″ 29″ Travel (mm front/mm rear)

160/150

Reach 425 455 485 515 Stack 616 625 634 643 HTA Head Tube Angle

64.0

OS Fork Offset

44

ST Seat Tube Length 395 415 440 455 STA Effective Seat Tube Angle 77.0 77.3 77.7 78.0 RC Rear Centre Length

462

BB Bottom Bracket Drop

25

BBH Bottom Bracket Height

350

HTT Horizontal Top Tube 567 596 624 652 WB Wheelbase 1224 1258 1292 1327 SOH Standover 700 703 720 731 HT Head Tube Length 100 110 120 130 Trail

134

Recommended Seatpost Drop 125 150 170 200 Maximum Post Insertion 225 250 275 300 Stem Length

40

Crank Length

165

Tire Size

2.35″ 2.6″

Water Bottle Compatible 1 x 620 mL 1 x 750 mL 2 x 620 mL or 1 x 750 mL 1 x 750 mL and 1 x 620 mL
