Marlin 5 Gen 2|VOLT/MIAMI GREEN|LITHIUM GREY|AZURE BLUE|RED|ML|L|XL|XXL|XS|S|M|29″|27.5″

These bikes are shipped unassembled. Bikes should be assembled by an authorized bicycle retailer.

Marlin 5 is a trail-worthy daily rider that’s perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2×8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

It’s right for you if…

You’re new to the trail and youre looking for a real mountain bike that doubles as a commuterand you want it all at an exceptional value.

The tech you get

A lightweight aluminum frame with internal routing to protect your cables and add to the bike’s sleek look, 2×8 drivetrain, a wide range of gearing so you always have the right gear for your terrain, powerful hydraulic disc brakes, and a terrain-smoothing suspension fork with a lockout.

The final word

Marlin 5 is a great ride for all your adventures. But it’s also versatile, and Marlin 5 is a popular ride on college campuses because the rack and kickstand mounts make it easy to accessorize and haul a load.

Why you’ll love it

1. It’s a real mountain bike that’s also perfectly suited to daily commutes, rides around campus, or just getting from A to B on any surface
2. Smaller frame sizes (XXS, XS, and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently
3. Marlin models in XXS through S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount
4. Rack and kickstand mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter
5. Like every model in the Marlin family, it’s backed by Trek’s lifetime warranty

Will my bike have a curved top tube?

Smaller frames have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frame sizes have a straight top tube because taller riders with longer legs typically dont have the same issues with standover height.

Fit for every rider

Marlin comes in seven frame sizes to suit riders of any height, and Smart Wheel Size ensures youre on the fastest wheel that fits. The smallest sizes even come with short-reach brake levers and narrower handlebars that give smaller riders better comfort and control.

High tech, high value

Marlin looks and feels great. Its packed with features usually found only on more expensive bikes, like a stylish frame with internal shift cable and brake hose routing, which can help your cables last longer by protecting them from the elements.

Upgrade your pedals and love your bike more

Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.

Frame Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135×5 mm QR *Fork Size:XXS
SR Suntour XCM 30, coil spring, preload, hydraulic lockout, 42mm offset for 26″ wheel, 100mm QR, 100mm travel Size:XS
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5″ wheel, 100mm QR, 80mm travel Size:S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 100 mm travel Size:M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29″ wheel, 100mm QR, 100mm travel Max compatible fork travel 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)

Wheels

Hub front Formula DC-20, alloy, 6-bolt, 5×100 mm QR Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR Skewer rear 152x5mm QR *Rim Size:XS , S
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve, Black Size:M , ML , L , XL , XXL
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve *Tire Size:XXS
Bontrager XR2 Comp, wire bead, 30 tpi, 26×2.20″ Size:XS , S
Bontrager XR2 Comp, wire bead, 30 tpi, 27.5×2.20″ Size:M , ML , L , XL , XXL
Bontrager XR2 Comp, wire bead, 30 tpi, 29×2.20″ Max tire size Frame: 29×2.20″ (XS & S: 27.5×2.40″), Fork: See manufacturer

Drivetrain

*Shifter Size:XXS , XS , S , M , ML , L , XL , XXL
Shimano M315, 2 speed Size:XXS , XS , S , M , ML , L , XL , XXL

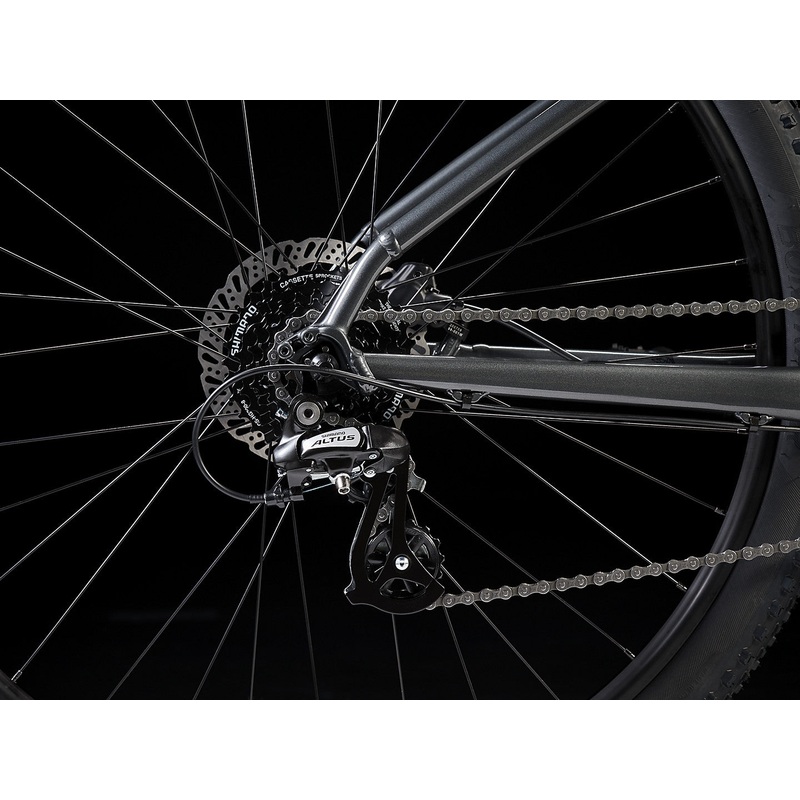

Shimano M315, 8 speed Front derailleur Shimano Altus M315, 34.9mm clamp, top swing, dual pull Rear derailleur Shimano Altus M310 *Crank Size:XXS
Prowheel TM-CY10, 36/22, 160 mm length Size:XS , S , M
Shimano M315, 36/22, 170mm length Size:ML , L , XL , XXL
Shimano M315, 36/22, 175mm length Bottom bracket Sealed cartridge, 73mm Cassette Shimano HG200, 12-32, 8 speed Chain KMC Z8.3, 8 speed Max chainring size 1x/2x: 34T, 3x: 42T

Components

Saddle Bontrager Arvada, steel rails, 138 mm width *Seatpost Size:XXS
Bontrager alloy, 31.6mm, 12mm offset, 300mm length Size:XS , S , M
Bontrager alloy, 31.6mm, 12mm offset, 330mm length Size:ML , L , XL , XXL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length *Handlebar Size:XXS , XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width Size:S , M , ML , L , XL , XXL
Bontrager alloy, 31.8mm, 5mm rise, 720mm width *Stem Size:XXS
Bontrager Comp, 31.8mm, 7 degree, 35mm length Size:XS
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length Size:S
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length Size:M
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length Size:ML , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 80mm length Size:XL , XXL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90mm length Headset Semi-integrated, 1-1/8″ Brake Tektro HD-M275 hydraulic disc, 180mm rotor Brake Set Tektro HD-M275 hydraulic disc, 160mm rotor

Weight

Weight M – 13.97 kg / 30.81 lbs Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
