**These bikes are shipped unassembled. Bikes should be assembled by an authorized bicycle retailer.**

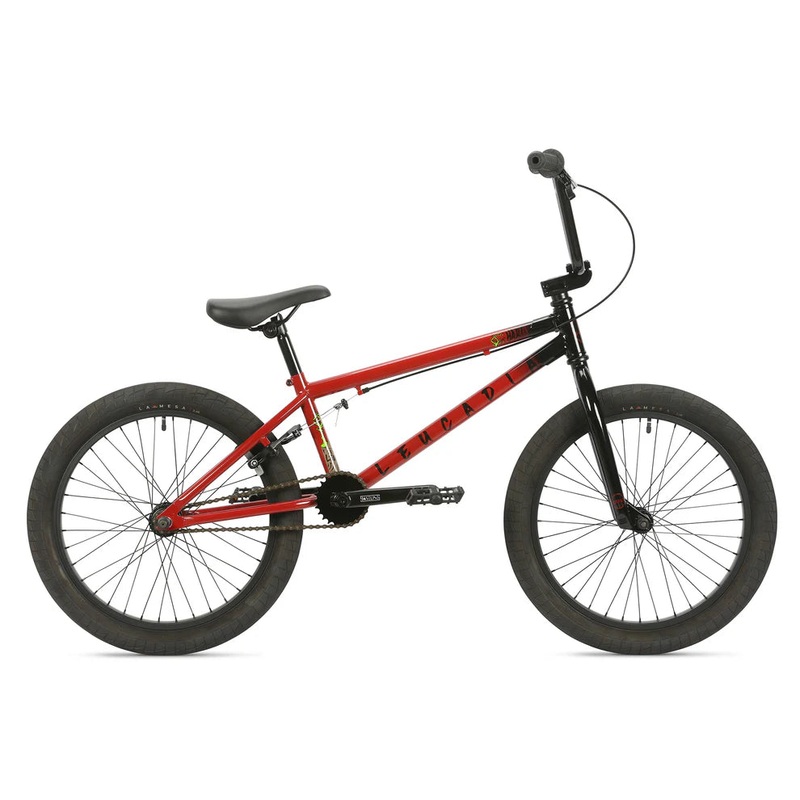

The Leucadia DLX has all the bells and whistles. Comes with front and rear brake, four pegs and a gyro system for that Nyquist inspired rider. Perfect bike to ride to school or hit up the local park or pump track. Comes with Haro’s own custom design Cr-Mo 3-Piece tubular cranks and sprocket, as well as the new Haro 2.4″ La Mesa tires Team grips and Topload molded stem.

  • Hi-ten frame with 18.5″ or 20.5″ top tube

  • Full hi-ten fork with tapered legs

  • Hi-ten bars 8.5″ with Haro 1978 alloy top load stem

  • Haro 1978 3-piece chromoly 8-spline 165mm (on 18.5″) or 170mm (on 20.3″) cranks with loose ball USA BB

  • 25/9 gearing with sealed bearing 9T driver

  • Haro padded fully adjustable seat

  • Haro La Mesa tires 20×2.4″ front/rear

  • Haro Team grips

  • Four pegs, front 990 brakes and Gyro

Specifications FRAMESET Frame Full Hi-Ten Frame Fork Full Hi-Ten 1 1/8″ Threadless w/ Tapered Legs & 990 Mounts Colors Black, Grey, Matte Lavender Weight 29.2 lbs DRIVETRAIN Cranks 3-pc Cr-Mo 8 Spline 165mm / 170mm, 25T Steel Sprocket Bottom Bracket Loose Ball American BB Sprocket 25T Steel Gearing 25/9 Pedals Low-Pro Nylon w/ Cr-Mo Axle, 9/16 Chain KMC 410 WHEELS Tires Haro La Mesa 20 x 2.4″ Hubs Front: Steel Shell 36h, Loose Ball Rear: Alloy Shell Cassette, 36h, Loose Ball w/ Sealed Bearing Driver Axle: 3/8″ Front / 14mm Rear Front Hub Steel Shell 36h, Loose Ball Rear Hub Alloy Shell Cassette, 36h, Loose Ball w/ Sealed Bearing Driver Axle 3/8″ Front / 14mm Rear Rims 20″ Alloy 36h, Single Wall BRAKING SYSTEM Brake Tektro Alloy 990 U-Brake Front & Rear Brake Lever Haro 78 Alloy Hinged Lever Front & Rear OTHER COMPONENTS Grips Haro Team Grips Handlebar Full Hi-Ten, 7.5″ Rise / 8.25″ Rise Stem Forged Alloy Top-Load, 50mm Ext. Headset Threadless Loose Ball, 1 1/8″ Seat Haro Padded Adjustable Seat Post Steel, 25.4mm Seat Post Clamp Integrated Pegs

Steel, Two Pair

GEOMETRY

  • Geometry frame chart

  • Geometry & Sizing Size A. Head Angle B. Seat Angle C. Top Tube D. Seat Tube E. Chainstay F. BB Height G. Stand Over 18.5 74.5 70 18.5 (470 mm) 10.2 (260 mm) 13.7 (349 mm) 11.5 (293 mm) 21.5 (546 mm) 20.5 74.5 70 20.5 (520 mm) 10.2 (260 mm) 13.7 (349 mm) 11.5 (293 mm) 21.5 (546 mm)
