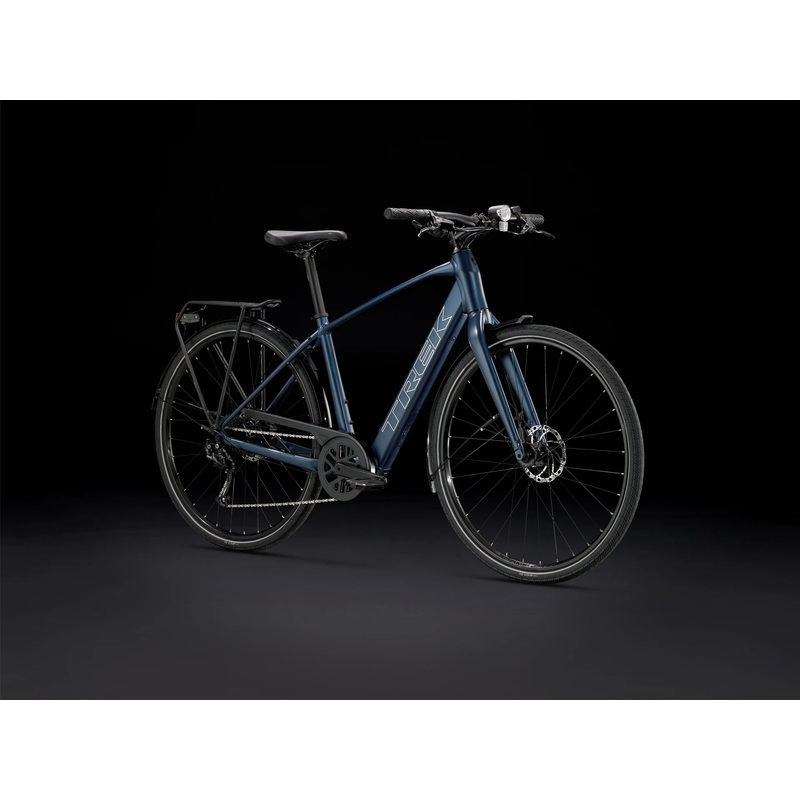

FX 2+|SATIN MULSANNE BLUE|M – STEP OVER

These bikes are shipped unassembled. Bikes should be assembled by an authorized bicycle retailer.

FX+ 2 is a lightweight city electric bike thats designed to make everyday excursions faster and more fun. It has an intuitive and natural feeling pedal assist system that makes exploring your city extra exciting and cruising up hills a breeze. Useful accessories like a rack and fenders add even more versatility to this bike.

It’s right for you if…

You want a lightweight, simple to use city e-bike that brings a capable boost to daily errands, commutes, and joyrides around your city.

The tech you get

A lightweight aluminum frame and fork, Trek’s proprietary pedal assist system with a hub motor (250W, 40Nm) that assists up to 20 mph and a 250Wh battery for a range of up to 35 miles per charge. Plus, fast 700c wheels, fast-rolling yet stable 40c tires with reflective sidewalls, a reliable 9-speed Shimano drivetrain, hydraulic disc brakes, integrated lights powered by the battery, a MIK-compatible rear rack, fenders, and a kickstand.

The final word

All the versatility and confidence of FX, with an electric boost that helps you do more and go farther! FX+ also comes with ride-ready accessories like a rack and fenders that make it easier to commute and run errands.

Why you’ll love it

1. This is our lightest city e-bike, making it easier to maneuver while parking and less of a pain to carry up stairs
2. The pedal assist system has a hub motor for a more natural ride feel and a simple LED remote that indicates your assist setting
3. It really is ready to roll, with included accessories like fenders, lights, and a MIK-compatible rear rack
4. Double your range with a 250Wh plug-and-play Range Extender battery that uses water bottle mounts to attach to your frame

Powerful drive system

A lightweight and powerful 40Nm rear hub drive offers confident handling and uninterrupted power.

Ultra-light design

Weighing in at just 40 pounds, FX+ is one of our lightest e-bikes ever.

Fully equipped frame

Integrated lights, fenders, and a rear rack mean you’re always ready to ride and run errands.

Compliant with leading safety regulations

The e-systems on Trek and Electra e-bikes are third-party tested to meet the latest e-bike safety regulations, including the stringent UL 2849 certificationso all you have to worry about is where your e-bike will take you next.

Upgrade your pedals and love your bike more

Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.

Frame Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, post mount disc, kickstand mount, 144.5mm OLD hub motor spacing Fork FX+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer

Wheels

Hub front Formula DC-20, alloy, 6-bolt, 5×100 mm QR Skewer front 135x5mm bolt-on Hub rear Hyena hub drive motor, 40Nm, 250W Rim Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve Tire Bontrager H2 Comp, reflective strip, wire bead, 30 tpi, 700x40mm Max tire size 700x50mm without fenders, 700x45mm with fenders

E-system

Battery 250Wh, integrated in down tube Charger 2A, 42V output, 100V-240V AC input Computer LED display

Drivetrain

Shifter Shimano Altus M2010, 9 speed Rear derailleur Shimano Altus M2000, long cage *Crank Size:S, M
ProWheel Pro alloy, 42T narrow-wide steel ring, 170mm length Size:L, XL
ProWheel Pro alloy, 42T narrow-wide steel ring, 175mm length Bottom bracket Torque sensor, threaded, 122.5mm spindle Cassette Shimano HG200, 11-36, 9 speed Chain KMC X9 Pedal Bontrager City pedals Max chainring size 1x: 42T

Components

Saddle Bontrager Sport *Seatpost Size:S, M
Bontrager alloy, 31.6mm, 12mm offset, 330mm length Size:L, XL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length *Handlebar Size:S, M
Bontrager alloy, 31.8mm, 15mm rise, 660mm width Size:L, XL
Bontrager alloy, 31.8 mm, 15 mm rise, 690 mm width Grips Bontrager XR Endurance Comp, lock-on *Stem Size:S, M
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90mm length Size:L, XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 100mm length Brake Shimano hydraulic disc, MT200 lever, UR300 caliper Brake rotor Shimano RT26, 6-bolt,160 mm Rotor size Max brake rotor sizes: 160mm front & rear

Accessories

*Light Size:S, M, L, XL
Herrmans MR4, 120 lumen, 40 lux, LED, headlight Size:S, M, L, XL
Spanninga Solo, taillight Kickstand Alloy, rear mount *Fender Size:S, M, L, XL
SKS plastic, rear Size:S, M, L, XL
SKS plastic, front

Weight

Weight M – 18.20 kg / 40.13 lbs Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
