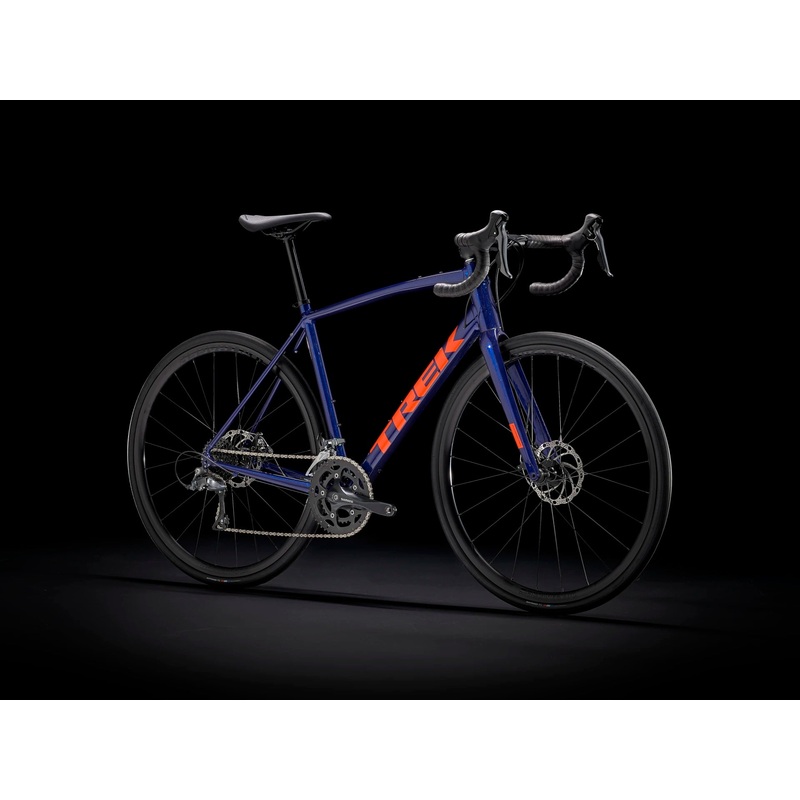

Domane AL 2 Gen 3|PURPLE ABYSS/TREK BLACK|52

These bikes are shipped unassembled. Bikes should be assembled by an authorized bicycle retailer.

Domane AL 2 Disc is an awesome pick for your first road bike. The lightweight frame is responsive yet stable for a fun, confidence inspiring ride. Plus, it’s built with reliable parts and disc brakes that provide better stopping power in any weather. Best of all, the comfort-focused design makes every single ride more enjoyable.

Frame 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S-compatible, flat-mount disc, 142×12 mm thru axle *Fork Size:44, 49, 52, 54, 56, 58, 61
Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle Size:49, 52, 54, 56, 58, 61
Domane AL carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat-mount disc, 12×100 mm thru axle Frame fit Endurance

Wheels

Hub front Formula RX-512 alloy, 6-bolt, 100x12mm thru axle Skewer front Bontrager Switch thru axle, removable lever Hub rear Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle Skewer rear Bontrager Switch thru axle, removable lever *Rim Size:44, 49, 52, 54, 56, 58, 61
Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve Size:44, 49, 52, 54, 56, 58, 61
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve Size:49, 52, 54, 56, 58, 61
Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve Spokes 14g stainless steel, black Tire Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm Max tire size 35mm without fenders, 32mm with fenders

Drivetrain

Shifter Shimano Claris R2000, 8 speed Front derailleur Shimano Claris R2000, 31.8 mm clamp Rear derailleur Shimano Claris R2000, medium cage, 34T max cog *Crank Size:44
Shimano RS200, 50/34 (compact), 165 mm length Size:49, 52, 54
Shimano RS200, 50/34 (compact), 170 mm length Size:56, 58, 61
Shimano RS200, 50/34 (compact), 175 mm length Bottom bracket Shimano UN300, 68mm, threaded cartridge, 110mm spindle Cassette Shimano HG31, 11-32, 8 speed Chain Shimano Sora HG71, 8 speed Max chainring size 1x: 42T, 2x: 50/34

Components

*Saddle Size:44, 49, 52
Bontrager P3 Verse Comp, steel rails, 155 mm width Size:54, 56, 58, 61
Bontrager P3 Verse Comp, steel rails, 145 mm width *Seatpost Size:44, 49
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length Size:52, 54, 56, 58, 61
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length *Handlebar Size:44, 49
Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width Size:52
Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width Size:54, 56
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width Size:58, 61
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width Handlebar tape Bontrager Supertack Perf tape *Stem Size:44
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length Size:49
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length Size:52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length Size:56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length Size:61
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length Headset FSA Integrated, sealed cartridge bearing, 1-1/8″ top, 1.5″ bottom Brake Tektro C550 mechanical disc brake, dual piston, flat mount, 160mm rotor Rotor size Max brake rotor sizes: 160mm front & rear

Weight

Weight 56 – 10.76 kg / 23.73 lbs Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
